DEF SERIES FOR SHORT LENGTH SOLUTIONS

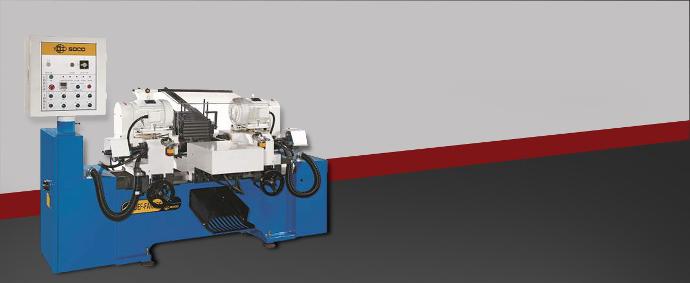

DEF Series Short Lengths Double Tube End Chamfering

DEF SHORT LENGTH SOLUTIONS

Short Lengths Double Tube End Chamfering, With An Optional BTM The Machines Offers Complete Automatic Loading, And Feeding.

Machine Features

  • Fully automatic chamfering system with two types of loading magazine
    • Rack - Sliding Magazine (standard)
    • BTM - Bundle loading magazine (optional)
  • Exernal and internal chamfering with facing in one process for double sides of tube, with optional radius (round) chamfering
  • Working length can be as short as 25mm up to 300mm
  • Diameter ranges from 12mm – 85mm
  • Suitable for tube and solid bars and materials such as steel, stainless, copper and aluminum (with speed inverter)
  • Ability to I/O chamfer as deep as 15mm
  • Suitable for I/O chamfering, facing, centering, deep chamfering and radius chamfering
  • Feeding system for the work piece to ensure a smooth process throughout
  • Rigid tool seat designed for durability, with easily fixable tool bits for longer working life
  • Two-steps chamfering process:
    • First speed – fast approach for saving time
    • Second speed – Infinitely adjustable chamfering speed for smooth finish
  • The length tolerance of each working piece can be controlled within +/-0.1mm through a cutting speed adjustment system

Machine Options

  • BTM – Bundle Loading Magazine
Model Number
Model Weight (lbs.)
Model Dimensions (ft.)
Working Length (mm)
Working Capacity
Mild Steel Tube
Mild Steel Solid Bar
Tube Wall Thickness
BTM
Bundle Loading Magazine
Pressurized Air
DEF-FA/60SS
DEF-FA/60SS + BTM
Rack Type: 2866
BTM Type: 3240
Rack Type: 7 x 7 x 5
BTM Type: 7 x 8.8 x 5
25 – 300

ØØ12 – Ø60
Ø9 – Ø30 / Ø30 – Ø60 (**)
4
#12) Ø18 – Ø32
#13) Ø24 – Ø46
#14) Ø40 – Ø57
#15) Ø50 – Ø85
----
DEF-FA/85SS
DEF-FA/85SS + BTM
Rack Type: 2866
BTM Type: 3240
Rack Type: 7 x 7 x 5
BTM Type: 7 x 8.8 x 5
25 – 300

Ø25 – Ø85
ØØ25 – Ø40 / Ø40 – Ø85 (**)
4
#12) Ø18 – Ø32
#13) Ø24 – Ø46
#14) Ø40 – Ø57
#15) Ø50 – Ø85
----
