TFS I/O End forming machine

​

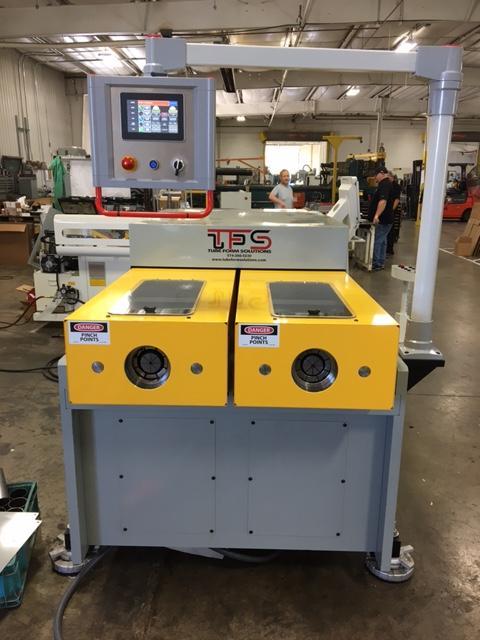

TFS-80 DUAL HEAD I/O All Electric End Former

This end former from Tube Form Solutions is the only one it's kind available. Designed for expansion and reduction of tubes also sizes the tube and brings it back to a certain round at the end of the cycle. This machine creates beading using segmented tools as well as forming a wide variety of sizes and shapes. It is also capable of adding features like dimples end forms.

Enquire Now

All about Electric End Former

  • All electric actuation
  • Servo positioning for all axis
  • Standard two hit tool head, each head
  • Up To 80 MM Expansion
  • Programmable ram adjustment
  • No hydraulic fluid
  • Very quiet, low dB’s during operation
  • Hand start
  • Light curtains
  • Standard guarding
  • Pedestal mounted HMI touch screen control
  • TFS on location training an setup for 2 full days
  • Customer-specified safety features
  • Machine color selection
  • Custom guarding
  • Machine modification for custom tooling
  • Custom tooling
  • On-Site training and setup
Model Number
SB-12x3A-2S
SB-19x3A-2S
SB-30x4A-2S
SB-39x3A-1S
SB-39x4A-2S
Model Weight (lbs.)2425308637485842 (1S)
6283 (2S)
Model Dimensions (ft.)7 x 3 x 410 x 3 x 411 x 3 x 414 x 5 x 4 (1S)
15 x 4 x 4 (2S)
Mild SteelØ10.0 x 1.2tØ19.05 x 1.0tØ30.0 x 1.5tØ38.1 x 3.17t
Stainless SteelØ10.0 x 0.9tØ16 x 1.0tØ25.4 x 1.2tØ38.1 x 2.2t
Max Tube Length w/ Mandrel1650230026703000 (1S)
3850 (2S)
Max Draw Bend60 mm80 mm120 mm180 mm
Max Bending Radius25 mm30 mm38 mm50 (2S) mm
Bending Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
Rotation Accuracy+/-0.1°
+/-0.1°
+/-0.1°
+/-0.1°
Feeding Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
Model NumberSB-51x4A-2S
SB-63x4A-2S
SB-80x4A-2S
SB-90x4A-2S
Model Weight (lbs.)8818110232094323148
Model Dimensions (ft.)16 x 4 x 516 x 4.5 x 4.523 x 7.5 x 6.516 x 8 x 5
Mild SteelØ50.8 x 2.5tØ63.5 x 2.5tØ76.2 x 2.0tØ88.9 x 2.2t
Stainless SteelØ50.8 x 1.9tØ63.5 x 1.9tØ76.2 x 1.5tØ88.9 x 1.5t
Max Tube Length w/ Mandrel3850385046004600
Max Draw Bend250 mm250 mm250 mm250 mm
Max Bending Radius75 mm75 mm80 mm80 mm
Bending Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
Rotation Accuracy+/-0.1°
+/-0.1°
+/-0.1°
+/-0.1°
Feeding Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
