​Straight Cut Tube Laser


​

​Straight Cut Tube Laser

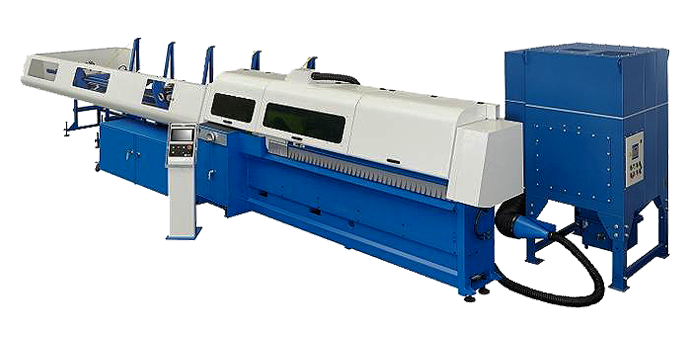

SLT-Roundcut Fiber Laser Tube Cutting Machine

The SOCO SLT-Roundcut brings you the latest technology in tube cutting.

Enquire Now Download Spec Sheet

  • Blade-Free, High accuracy, and Decreased Wastage
  • Great flexibility
  • Tool-Free Cutting: No Saw Blades, No Resharpening and Eliminate Saw Blade Management Issues
  • Minimal Material Waste
  • Cutting Hard Materials at the Lowest Cost per Cut
  • Superior Results

Equipped with a bundle loading magazine and with an output gate of 2 or 3 or 4.5 meters, the SLT-Roundcut offers the highest output for mild steel, stainless steel, aluminum, and high tensile tubes.

  • Full Automation with Automatic Magazine Loading + Feeding + Cutting
  • SOCO IRMS For Remote Monitoring and Service
  • Capacity: Ø 12 to Ø 101.6 mm (Round Tubes)
  • Cutting Lengths: From 2 mm ~ 500 mm (Standard) and up to 4.5 Meters
  • Laser Power: 1 kW (Standard). 700 W and 2 kW is optional.
  • Automatic Separation of First and Last Workpieces
  • It may be connected to other SOCO Systems for Further Automation


Model Number
SB-12x3A-2S
SB-19x3A-2S
SB-30x4A-2S
SB-39x3A-1S
SB-39x4A-2S
Model Weight (lbs.)2425308637485842 (1S)
6283 (2S)
Model Dimensions (ft.)7 x 3 x 410 x 3 x 411 x 3 x 414 x 5 x 4 (1S)
15 x 4 x 4 (2S)
Mild SteelØ10.0 x 1.2tØ19.05 x 1.0tØ30.0 x 1.5tØ38.1 x 3.17t
Stainless SteelØ10.0 x 0.9tØ16 x 1.0tØ25.4 x 1.2tØ38.1 x 2.2t
Max Tube Length w/ Mandrel1650230026703000 (1S)
3850 (2S)
Max Draw Bend60 mm80 mm120 mm180 mm
Max Bending Radius25 mm30 mm38 mm50 (2S) mm
Bending Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
Rotation Accuracy+/-0.1°
+/-0.1°
+/-0.1°
+/-0.1°
Feeding Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
Model NumberSB-51x4A-2S
SB-63x4A-2S
SB-80x4A-2S
SB-90x4A-2S
Model Weight (lbs.)8818110232094323148
Model Dimensions (ft.)16 x 4 x 516 x 4.5 x 4.523 x 7.5 x 6.516 x 8 x 5
Mild SteelØ50.8 x 2.5tØ63.5 x 2.5tØ76.2 x 2.0tØ88.9 x 2.2t
Stainless SteelØ50.8 x 1.9tØ63.5 x 1.9tØ76.2 x 1.5tØ88.9 x 1.5t
Max Tube Length w/ Mandrel3850385046004600
Max Draw Bend250 mm250 mm250 mm250 mm
Max Bending Radius75 mm75 mm80 mm80 mm
Bending Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
Rotation Accuracy+/-0.1°
+/-0.1°
+/-0.1°
+/-0.1°
Feeding Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm


Lease A New Straight Cut Tube Laser Machine

Through our financing partners, you’ll find financial programs, leasing, and loan services at very competitive rates. No Financials or Tax Returns are required* and credit decisions are usually made within 24 hours.
