HSG Tube Laser Cutting Machines
HSG fiber tube lasers from 1.5 to 20 kW, for 8 mm instrument tube up to 715 mm structural pipe, including beveling, multi-chuck and drill-and-tap models.
Heavy-Duty Tube Lasers
High power and multi-chuck designs for large, heavy structural tube and pipe.

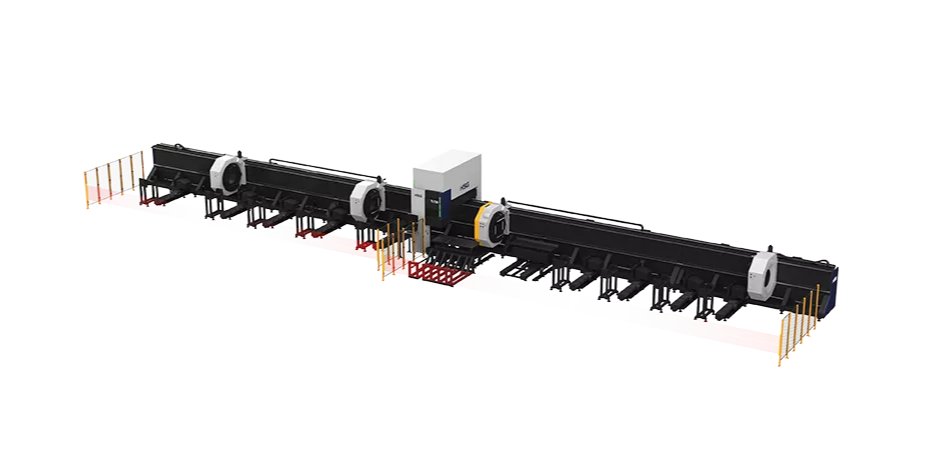

TLS
HSG's flagship "4+1" full-track heavy-duty tube laser, with beveling.
- 12–20 kW
- Round tube 120–715 mm
- Single tubes up to 4,000 kg

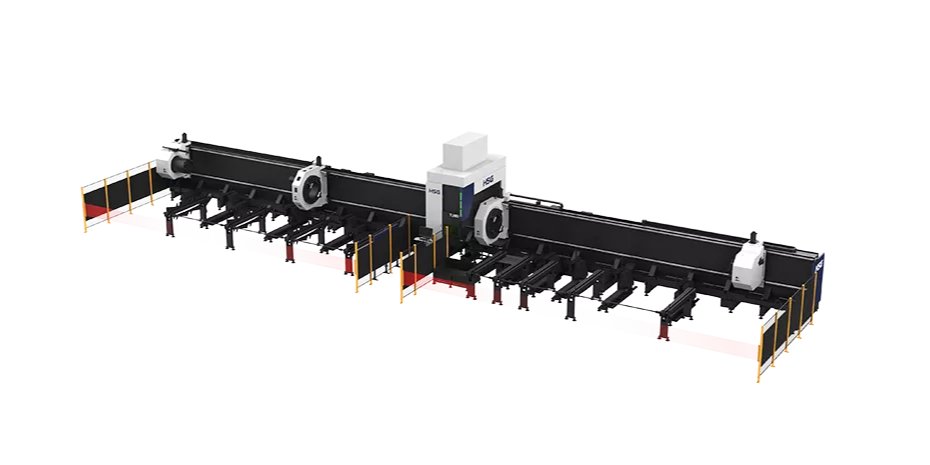

TL
Four-chuck heavy-duty tube laser for large structural sections.
- 6–20 kW
- Round tube 80–660 mm
- Single tubes up to 3,000 kg

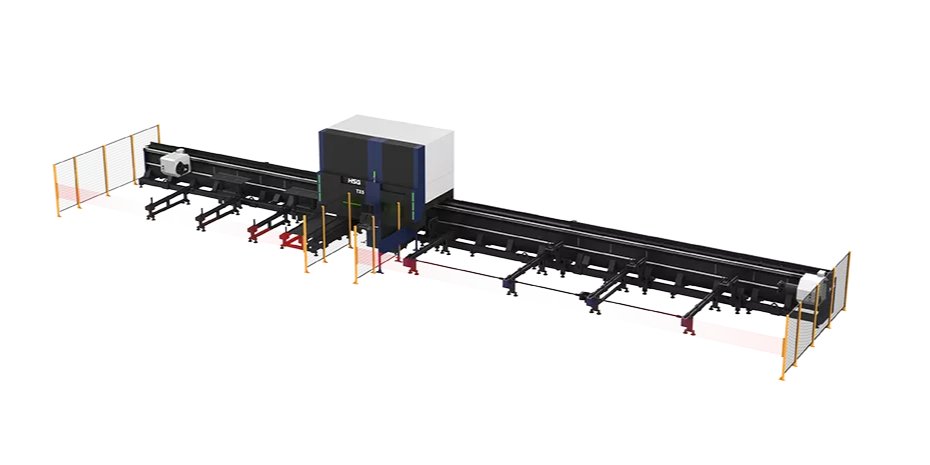

TX5R
Heavy-duty tube laser on the HSG-X10000 bus control system, with optional beveling.
- 6–20 kW
- Round 50–510 mm; square to 500 mm
- Single tubes up to 2,000 kg

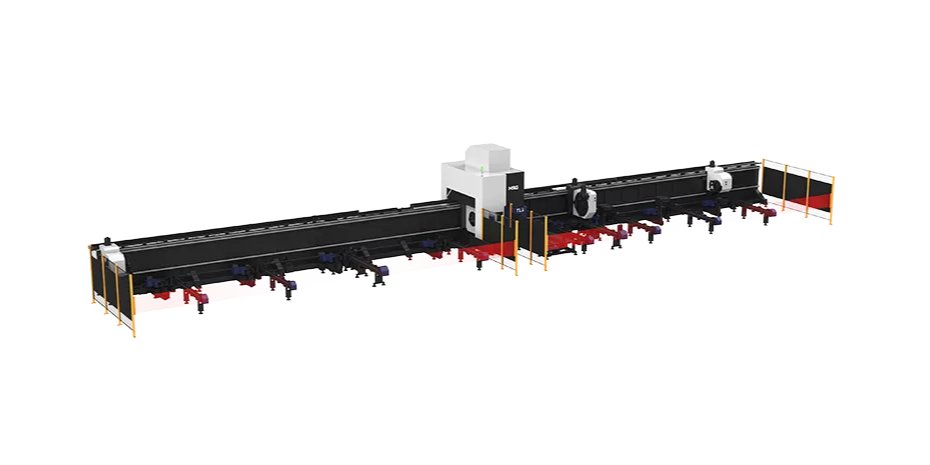

TL3 PRO
New 4+1 full-floating, high-speed heavy tube cutter: one machine for a wide range of tube sizes.
- 6–20 kW
- Round and square 20–360 mm
- 100 m/min, 1.0G; twin chucks standard

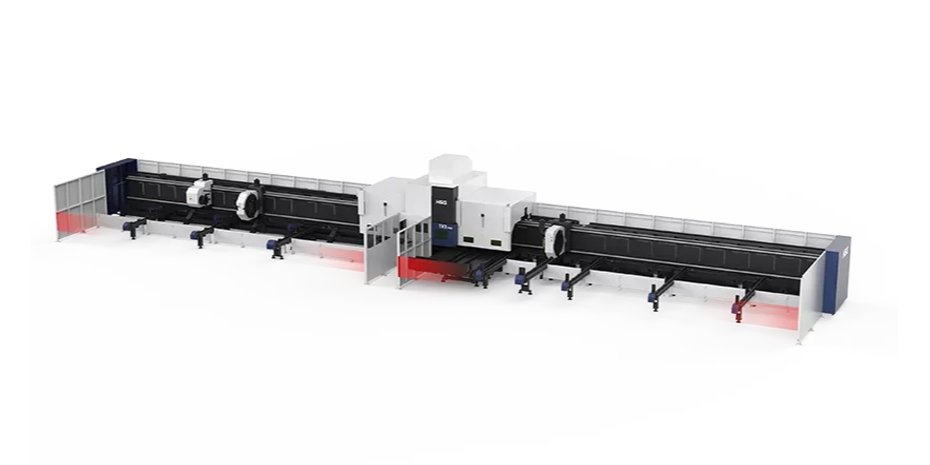

TX3 PRO
3+1 full-floating, high-speed heavy tube cutter.
- 6–20 kW
- Round and square 40–360 mm
- 100 m/min, 1.0G; bevel and twin chuck optional

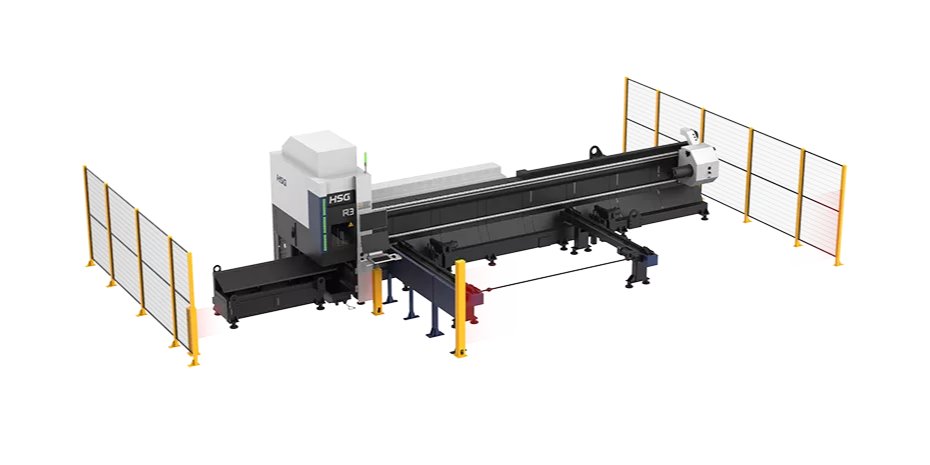

R3R
Economical heavy-duty tube laser with high power options.
- 3–20 kW
- Round and square 40–360 mm
- R3R-120 handles single tubes up to 1,200 kg
Production & Small-Tube Lasers

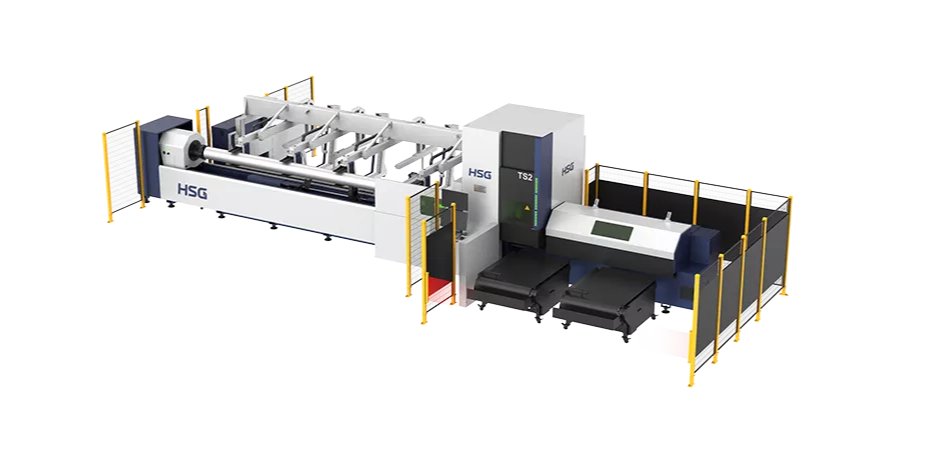

TS2
High-speed production tube laser with long-tube options.
- 3–6 kW
- Round 12–273 mm; square to 220 mm
- Tube lengths up to 6.5 m (TS2) or 9.2 m (TS2-90)

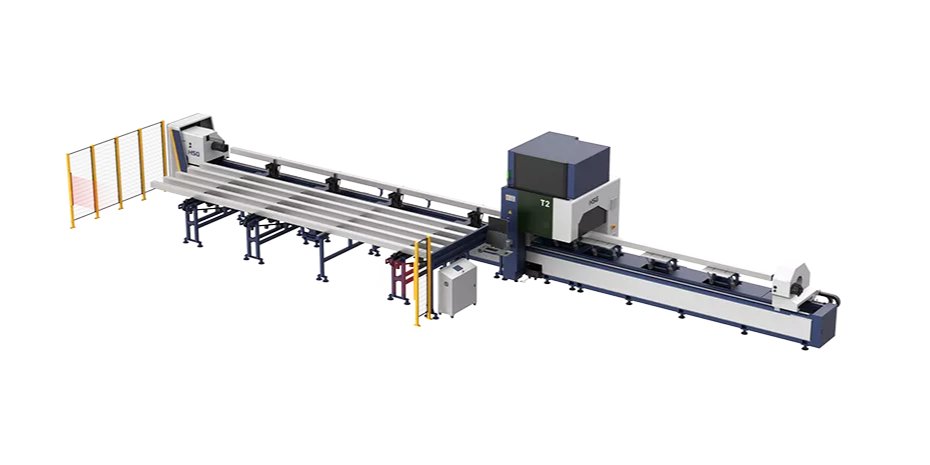

T2
Three-chuck tube laser for precise cutting with minimal tailing.
- 3–6 kW
- Round and square 20–240 mm
- ±0.03 mm/m positioning accuracy

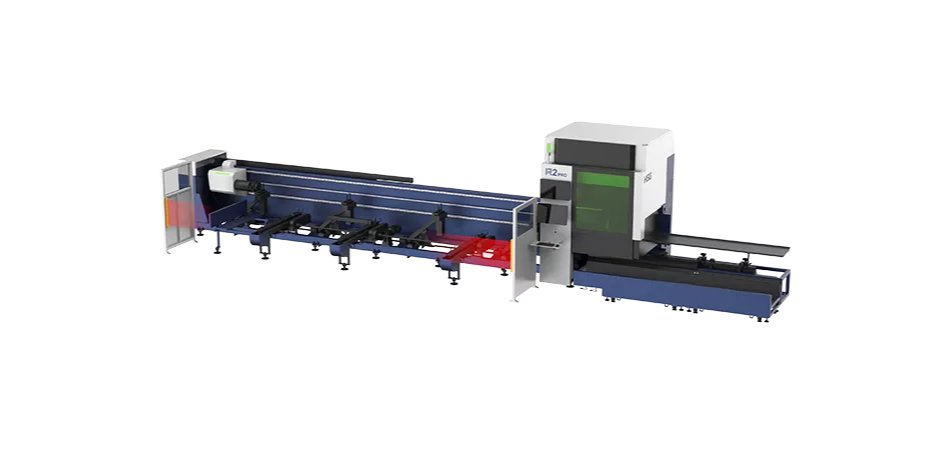

R2 PRO
All-new high-speed tube cutter, 1.5G and 150 m/min.
- 3–6 kW
- Round, square and rectangular 12–240 mm
- Tube lengths up to 6.5 m or 9 m (R2-90 PRO)

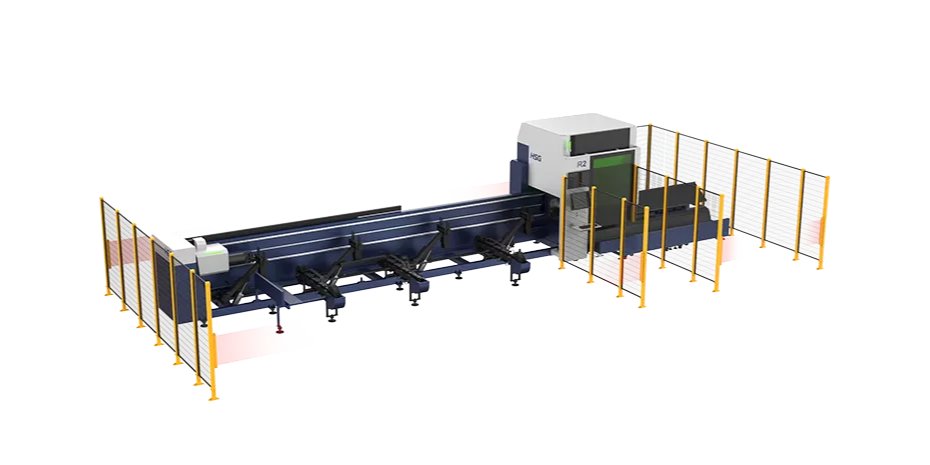

R2
Dual-chuck tube fiber laser for general production.
- 3–6 kW
- Round and square 12–240 mm
- Single tubes up to 300 kg

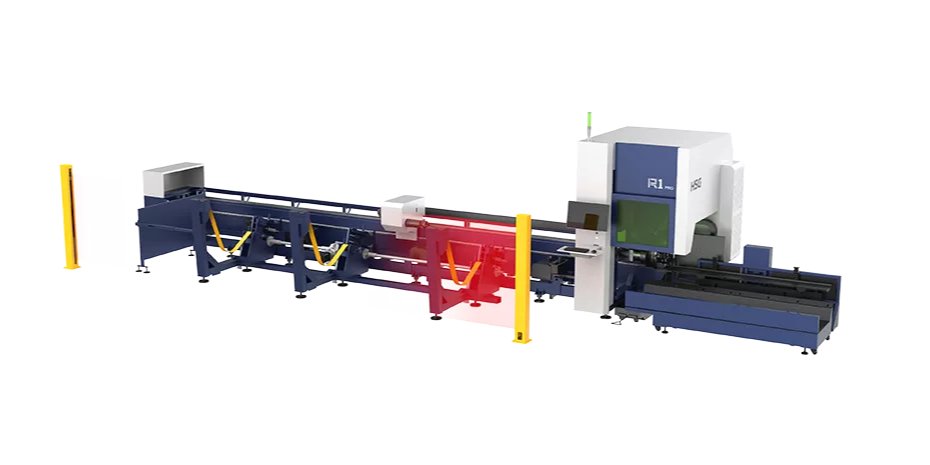

R1 PRO
High-speed small-tube laser with 2.0G acceleration and 200 m/min.
- 1.5–6 kW
- Round, square and rectangular 8–120 mm
- Chuck speed up to 240 rpm

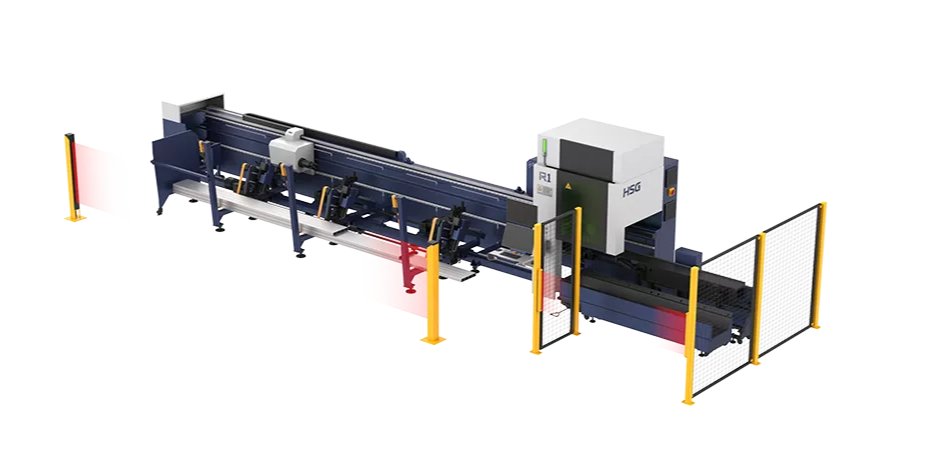

R1
High-speed laser for tiny tube.
- 1.5–6 kW
- Round and square 8–120 mm
- R1R variant available
HSG Tube Laser Comparison
| Model | Laser power | Round tube | Square tube | Max single tube |
|---|---|---|---|---|
| TLS (TL730S) | 12–20 kW | 120–715 mm | 120 × 120 to 500 × 500 mm | 4,000 kg |
| TL (TL660) | 6–20 kW | 80–660 mm | 80 × 80 to 450 × 450 mm | 3,000 kg |
| TX5R | 6–20 kW | 50–510 mm | 50 × 50 to 500 × 500 mm | 2,000 kg |
| TL3 PRO | 6–20 kW | 20–360 mm | 20 × 20 to 360 × 360 mm | 1,600 kg |
| TX3 PRO | 6–20 kW | 40–360 mm | 40 × 40 to 360 × 360 mm | 1,600 kg |
| R3R / R3R-120 | 3–20 kW | 40–360 mm | 40 × 40 to 360 × 360 mm | ≈600 / 1,200 kg |
| TS2 / TS2-90 | 3–6 kW | 12–273 mm | 12 × 12 to 220 × 220 mm | 300 kg |
| T2 | 3–6 kW | 20–240 mm | 20 × 20 to 240 × 240 mm | 300 kg |
| R2 PRO / R2-90 PRO | 3–6 kW | 12–240 mm | 12 × 12 to 240 × 240 mm | — |
| R2 | 3–6 kW | 12–240 mm | 12 × 12 to 240 × 240 mm | 300 kg |
| R1 PRO | 1.5–6 kW | 8–120 mm | 8 × 8 to 120 × 120 mm | — |
| R1 / R1R | 1.5–6 kW | 8–120 mm | 8 × 8 to 120 × 120 mm | ≈80 kg |
HSG tube lasers complement our SOCO tube lasers with higher power and larger capacities. Not sure which fits? Send us your tube sizes, materials and volumes and we will recommend the right machine.
Supported by Tube Form Solutions
We handle applications engineering, installation, operator training, preventive maintenance and spare parts, with flexible leasing through our financing partner.
