Tube Form Solutions: Advanced Automation Cells for Tube Forming
Automation cells let one operator run more parts with less handling. We build cells around SOCO benders, lasers and saws, and around collaborative robots, adding loading, unloading, inspection, conveyors and fixtures, so parts move from raw tube to finished component with fewer touches.
Advanced Cobot Automation for Tube Forming Processes
We offer Jaka Cobots for a wide variety of applications including screw driving, polishing, glue dispensing, pick and place, packaging, painting, welding, assembly, and much more!
“Free Your Hands” is JAKA’s mission, and they deliver amazing automation including drive control integration, integral joints, free-drive programming, wireless connection, and more.

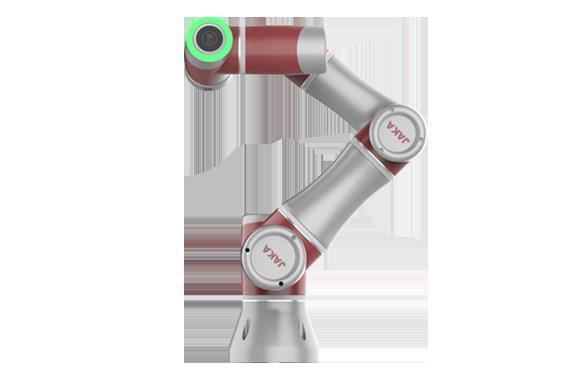

JAKA Ai3
JAKA1

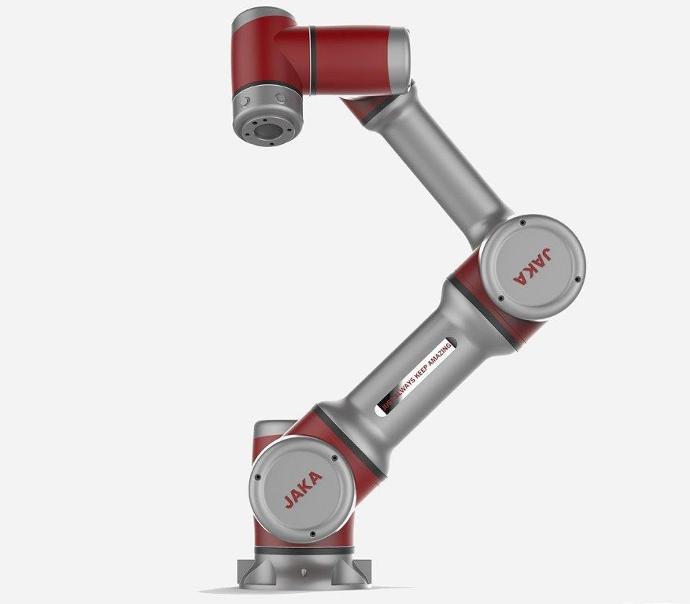

JAKA 7

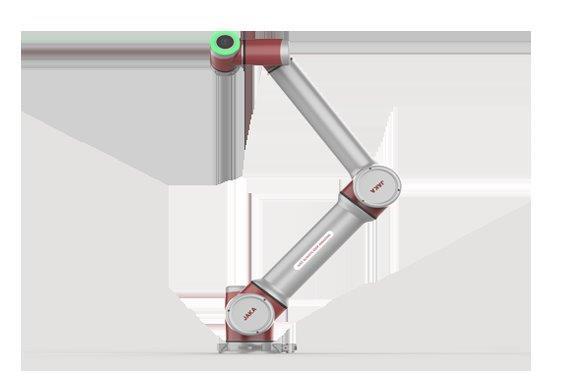

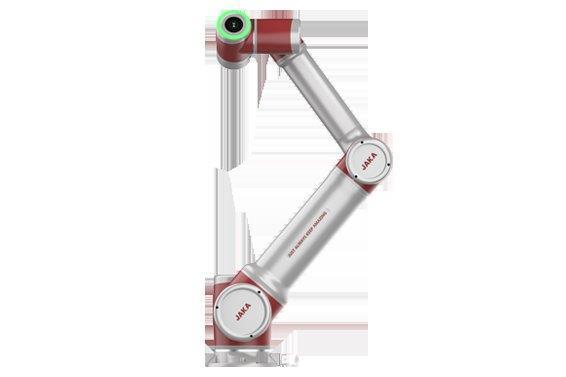

JAKA 18

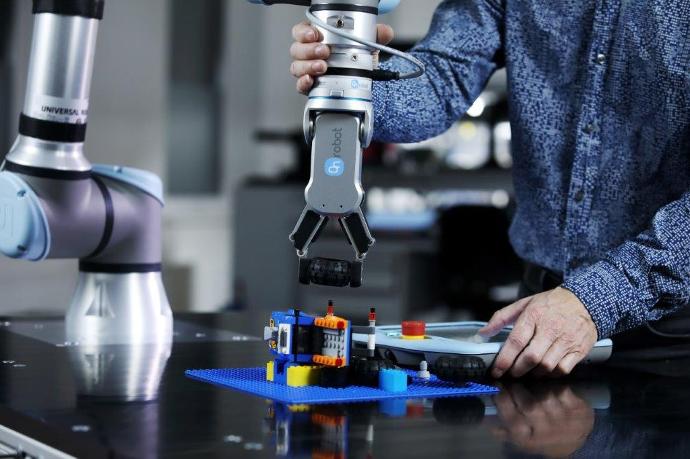

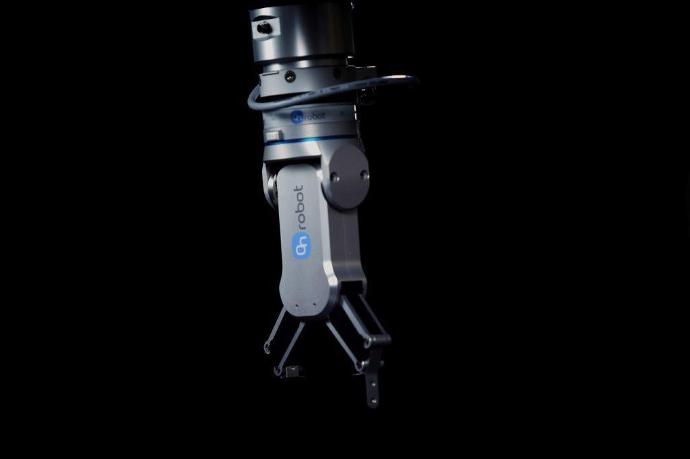

We also supply Onrobot gripping and sensing systems for industrial automation. These flexible tools enable your workforce to work side-by-side with collaborative robots on assembly, surface finishing, pick and place, machine tending, or testing.

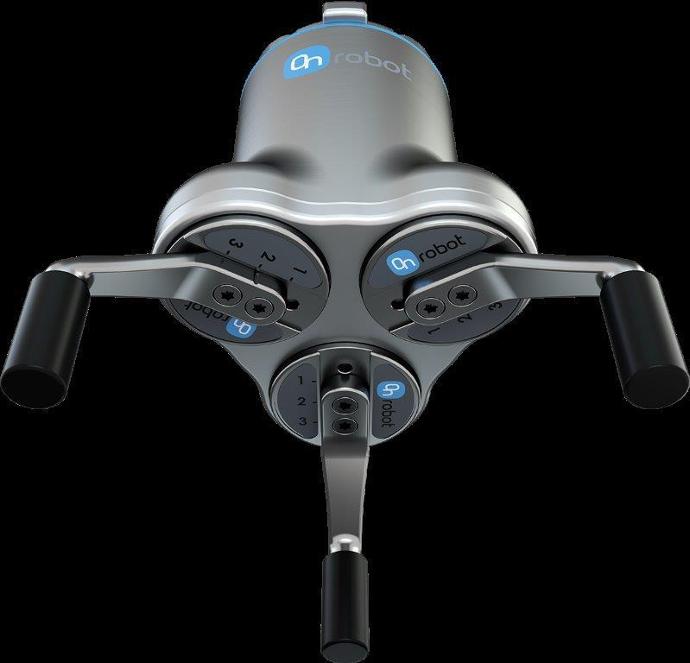

Three Finger Gripper
Mobile Heavy Duty Universal Robot Stand
Large Fenced Safety Perimeter with Wire Mesh Panels
Vention’s automation platform enables the entire system to become your low-cost, short lead time, automation answer to labor and other shop floor concerns.
Small Robot Station with Enclosure
Mobile Heavy Duty Universal Robot Stand
Large Fenced Safety Perimeter with Wire Mesh Panels

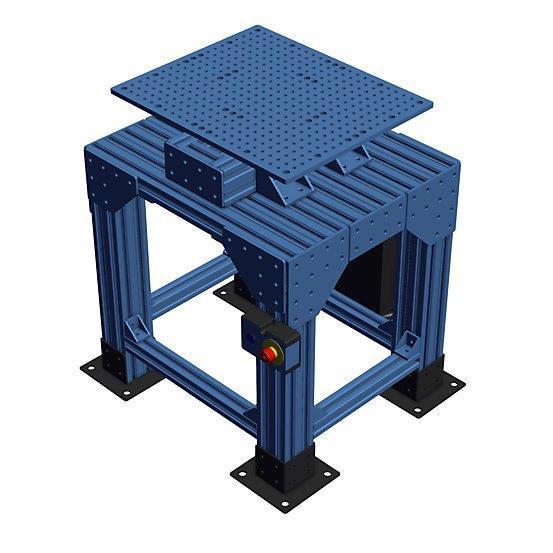

Heavy-Duty Compact Turntable
Inspection Platform

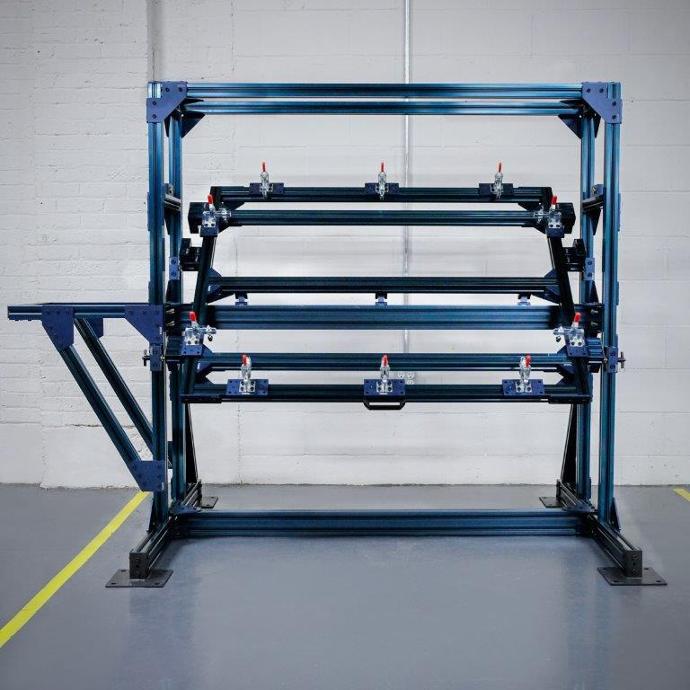

Fixture
Automated Conveyor
Automated Conveyor
SOCO Automation Cells
Complete SOCO production cells that link loading, processing, finishing, measuring and stacking, with centralized controls and SOCO IRMS remote monitoring.
Tube Laser Cells
Automatic loading (M6 rack or MB6 bundle loader), alignment, fiber laser cutting, then deburring or chamfering, length measuring and stacking in one line.
- Built around the SLT-80, SLT-102 or SLT-152 fiber tube lasers
- Inline BDB-70 deburring or chamfering
Tube Bending Cells
6-axis robots, dedicated loaders and unloaders, CNC benders, and optional punching and sawing, all managed from central controls.
- Example: 2 benders, 4 robots and 2 unloaders
- Load, bend, punch and saw in one cell
4-Tube Cutting Cell (SA-85NCE-MULTI)
Bundle-cuts up to four tubes at once for very high output on small diameters.
- 10–32 mm OD, 50–3,000 mm cut lengths
- About 1.2 s per piece (2,000+ pieces per hour)
- 7 servo axes, connects to deburring, washing, measuring and stacking
High-Tensile In-Line Cell (SA-78NCE)
Cuts high-tensile automotive tube for impact beams, chassis and cross bars, then deburrs or chamfers, measures and stacks it.
- 10–78 mm OD round, square and rectangular tube, plus round bar
- Cycle times around 4.5 s; 3–5 minute changeovers
- LM-3000 length measuring (±0.01 mm) and STK-3000 stacking
Tube + Bar Machining Center (SA-65/2)
Cutting, machining, washing and length measuring in one machine, with all four stations running at once.
- 12–65 mm OD, 25–350 mm cut lengths
- Chamfering, facing and centering; optional threading, turning, tapping and drilling
- 5–7 CNC servo axes, SOCO i2 software
Lease A New Automation Cell
Through our financing partners, you’ll find financial programs, leasing, and loan services at very competitive rates. No Financials or Tax Returns are required* and credit decisions are usually made within 24 hours.
