A Series CNC Hybrid Benders

Four Electric CNC Axes

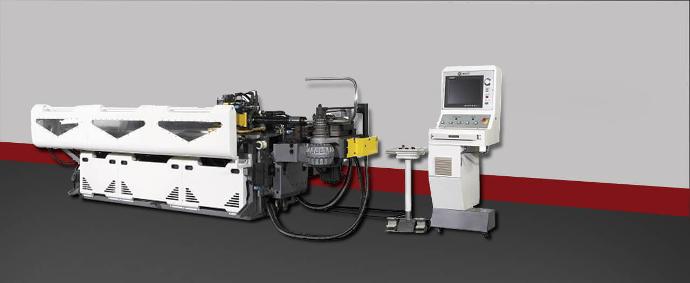

aseries_main2-1
aseries_main2-1

Equipped with three – four electric CNC axes, multiple bending stacks and the unique DGT technology, this line of SOCO tube benders can offer one of the highest performance solutions in the market.

Request a Quote Download Spec Sheet Request More Information
  • Equipped with DGT Technology
  • Rack pinion feeding
  • Side positioned bending head and carriage
  • Elongated bending neck
  • Electric servo-controlled axes
  • Centralized greasing for sliding area
  • 2 speeds, early mandrel extraction
  • Automatic mandrel lubrication
  • Touch screen with IPC (Industrial PC)
  • Single or multi-stacks
  • Independent pressure die system for each bending stack
  • Wiper die seat and lubrication
  • 63mm; 80mm and 90 mm range may be equipped with SOCO DBS system – (2C – double blades shearing – optional)
Model Number SB-12x3A-2S SB-19x3A-2S SB-30x4A-2S SB-39x3A-1S
SB-39x4A-2S
Model Weight (lbs.) 2425 3086 3748 5842 (1S)
6283 (2S)
Model Dimensions (ft.) 7 x 3 x 4 10 x 3 x 4 11 x 3 x 4 14 x 5 x 4 (1S)
15 x 4 x 4 (2S)
Mild Steel Ø10.0 x 1.2t Ø19.05 x 1.0t Ø30.0 x 1.5t Ø38.1 x 3.17t
Stainless Steel Ø10.0 x 0.9t Ø16 x 1.0t Ø25.4 x 1.2t Ø38.1 x 2.2t
Max Tube Length w/ Mandrel 1650 2300 2670 3000 (1S)
3850 (2S)
Max Draw Bend 60 mm 80 mm 120 mm 180 mm
Max Bending Radius 25  mm 30 mm 38 mm 50 (2S) mm
Bending Accuracy +/-0.1 mm +/-0.1 mm +/-0.1 mm +/-0.1 mm
Rotation Accuracy +/-0.1° +/-0.1° +/-0.1° +/-0.1°
Feeding Accuracy +/-0.1 mm +/-0.1 mm +/-0.1 mm +/-0.1 mm
Model Number SB-51x4A-2S SB-63x4A-2S SB-80x4A-2S SB-90x4A-2S
Model Weight (lbs.) 8818 11023 20943 23148
Model Dimensions (ft.) 16 x 4 x 5 16 x 4.5 x 4.5 23 x 7.5 x 6.5 16 x 8 x 5
Mild Steel Ø50.8 x 2.5t Ø63.5 x 2.5t Ø76.2 x 2.0t Ø88.9 x 2.2t
Stainless Steel Ø50.8 x 1.9t Ø63.5 x 1.9t Ø76.2 x 1.5t Ø88.9 x 1.5t
Max Tube Length w/ Mandrel 3850 3850 4600 4600
Max Draw Bend 250 mm 250 mm 250 mm 250 mm
Max Bending Radius 75  mm 75 mm 80 mm 80 mm
Bending Accuracy +/-0.1 mm +/-0.1 mm +/-0.1 mm +/-0.1 mm
Rotation Accuracy +/-0.1° +/-0.1° +/-0.1° +/-0.1°
Feeding Accuracy +/-0.1 mm +/-0.1 mm +/-0.1 mm +/-0.1 mm
