NC Series Tube Benders

NC_Series_TubeBenders
NC_Series_TubeBenders

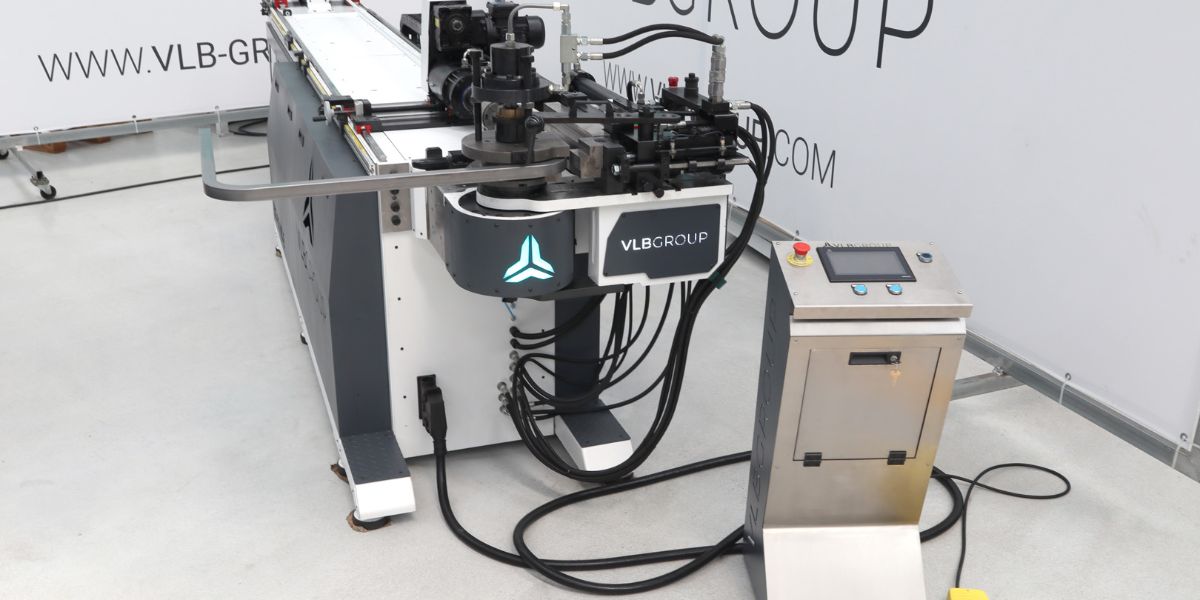

An NC tube bender is equipped with an NC control unit with touch screen interface. Its operation is easy-to-use with high bending accuracy. It is a practical semi-automatic solution for small to medium productions environments. It has up to nine programmable bends and eight length stoppers.

Request a Quote Download Spec Sheet Request More Information
  • NC control unit with 15” touch screen
  • Up to 9 programmable bends
  • Easy operation interface and enable easy data input
  • 500 sets program capacity storage
  • High bending accuracy up to +/- 0.15◦
  • Self diagnosis and error messages on screen
  • Hydraulic clamping with optional pressure die assist
  • Suitable for various materials such as steel, stainless, aluminum and copper
Model Number SB-38NC SB-63NC SB-80NC
Model Weight (lbs.) 1985 3683 6945
Model Dimensions (ft.) 8.2 x 3 x 4 12.5 x 3 x 4 13 x 6.5 x 4
Mild Steel (mm) (clr 1.5D) Ø38.1 x 2.0t Ø63.5 x 2.5t Ø88.9 x 2.3t
Stainless Steel (mm) (clr 1.5D) Ø38.1 x 1.5t Ø63.5 x 1.6t Ø101.6 x 4.0t
Rectangular Steel Tube (mm) (clr 2.5D) 38 x 25 x 2.0t 60 x 30 x 3.2t 76.2 x 45 x 3.2t
Max Tube Length with Mandrel 2180 mm 2600 mm 2850 mm
Max Bending Radius 200 mm 250 mm 250 mm
Max Bending Angle 185° 185° 185°
Bends per tube 9 bends 9 bends 9 bends
Model Number SB-110NC SB-130NC SB-168NC
Model Weight (lbs.) 15873 22046 35274
Model Dimensions (ft.) 13 x 6.5 x 4 23 x 7 x 5 32 x 9.5 x 8.5
Mild Steel (mm) (clr 1.5D) Ø110 x 2.8t Ø127 x 4.0t Ø168 x 6.8t
Stainless Steel (mm) (clr 1.5D) Ø101.6 x 4.0t Ø120 x 3.0t Ø120 x 4.3t
Rectangular Steel Tube (mm) (clr 2.5D) 76.2 x 76.2 x 2.2t 101.6 x 101.6 x 3.0t 127 x 127 x 6.8t
Max Tube Length with Mandrel 3600 mm 5200 mm 7000 mm
Max Bending Radius 400 mm 500 mm 600 mm
Max Bending Angle 190° 190° 190°
Bends per tube 9 bends 9 bends 9 bends
