V Series Hybrid Benders

v-series-draw-roll-cnc-benders
v-series-draw-roll-cnc-benders

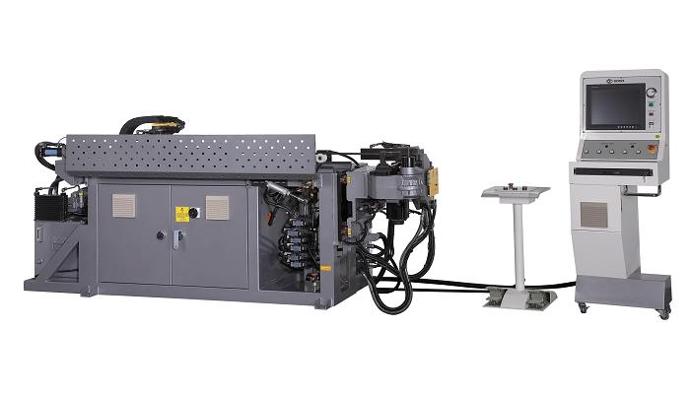

Combining draw and roll bending technology, the v series allows the pipe bending of two different fixed radii and multiple large roll bending radii in a single part.

Request a Quote Download Spec Sheet Request More Information
  • Equipped with DGT Technology
  • Rack pinion feeding
  • SOCO Proprietary Pipe Bending Operation Software
  • Multi-stacks for Draw and Roll (Large Radius) bending
  • Programmable Boosting Force for 1D Bending (*)
  • Ability to bend parts with “0” straight lengths
  • Programmable arc lengths for large a radius
  • Roll Bending Springback compensation settings
  • Special bending compensation and data storage fields
  • Low noise level with highest transmission performance
  • 80mm and 90mm range may be equipped with SOCO DBS system ( 2C – Double Blades Shearing ) ( Optional )

(*) in accordance to material’s elongation ratio

Model Number SB-20x4A-3SV SB-30X4A-3SV SB-39x4A-3SV SB-51x4A-3SV
Model Weight (lbs.) 3307 3968 7716 9921
Model Dimensions (ft.) 7 x 3 x 4 10 x 3 x 4 11 x 3 x 4 14 x 5 x 4 (1S)
15 x 4 x 4 (2S)
Mild Steel Ø20 x 1.2t Ø30.0 x 1.5t Ø38.1 x 3.2t Ø50.8 x 2.8t
Stainless Steel Ø16 x 1.2t Ø25.4 x 1.2t Ø38.1 x 2.2t Ø50.8 x 1.9t
Max Tube Length w/ Mandrel 2070 mm 2670 mm 3850 mm 3700 mm
Max Draw Bend 80 mm 120 mm 180 mm 250 mm
Max Bending Radius 30  mm 38 mm 50 mm 75 mm
Bending Accuracy +/-0.1 mm +/-0.1 mm +/-0.1 mm +/-0.1 mm
Rotation Accuracy +/-0.1° +/-0.1° +/-0.1° +/-0.1°
Feeding Accuracy +/-0.1 mm +/-0.1 mm +/-0.1 mm +/-0.1 mm
Model Number SB-63X4A-3SV SB-80x4A-3SV SB-90X4A-3SV
Model Weight (lbs.) 12125 20944 23149
Model Dimensions (ft.) 16 x 4 x 5 16 x 4.5 x 4.5 23 x 7.5 x 6.5
Mild Steel Ø63.5 x 2.5t Ø76.2 x 2.0t Ø88.9 x 2.5t
Stainless Steel Ø63.5 x 2.0t Ø76.2 x 1.5t Ø88.9 x 1.6t
Max Tube Length w/ Mandrel 3700 mm 4600 mm 4600 mm
Max Draw Bend 250 mm 250 mm 250 mm
Max Bending Radius 75  mm 80 mm 80 mm
Bending Accuracy +/-0.1 mm +/-0.1 mm +/-0.1 mm
Rotation Accuracy +/-0.1° +/-0.1° +/-0.1°
Feeding Accuracy +/-0.1 mm +/-0.1 mm +/-0.1 mm
