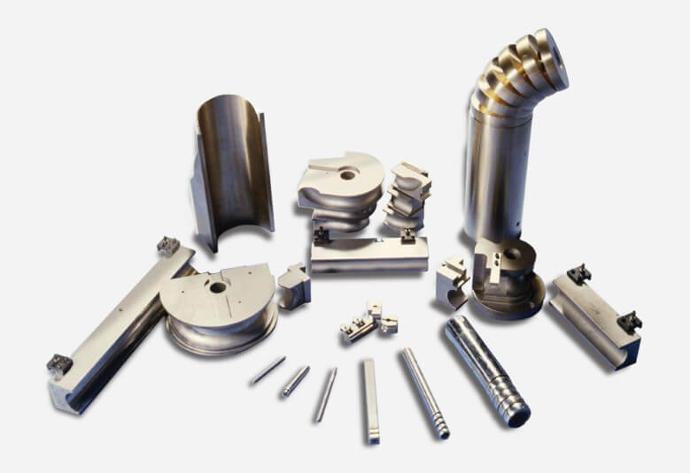

Tube Bending Tooling

​

Efficient Tube Bending Tooling

Tube Bending Tooling Services

Leverage the power of precision and efficiency with Tube Form Solutions' top-of-the-line tube bender tooling. Our tools are designed to deliver flawless bends every time. Whether you're a professional or a DIY enthusiast, our carefully selected range of tooling solutions ensures optimum performance, durability, and unparalleled results for all your tube bending needs. Get ready to dive deep into our tube bending tooling solution, where you can explore all the intricate features, benefits, and technological innovations that make our tools stand out from the rest. When you choose Tube Form Solutions, you're not just investing in a product, you're investing in a legacy of quality and excellence.

So, why wait? Check out our offerings, and take your tube bending processes to new heights of precision.


Enquire Now

Need a tool set built quickly? Our engineers and design team are ready to help.


Need a vendor managed inventory program for your high volume tooling? We have the system in place and experience to deliver what you need when you need and eliminate the logistics hassles of regularly buying tooling.


Need custom, unique, proprietary, or low volume tools for your tube bending job shop? No problem, our production system can cost effectively produce tools for you.

  • Complete Turn-Key Projects
  • Applications Support
  • Tool Sets
  • Replaceable Wiper Die Tips
  • On-site Tooling Evaluations
  • Training Consultation
  • Individual Tooling
  • Refurbishments
  • Round
  • Square
  • Rectangle
  • Odd Round
  • Elliptical
  • Mandrel Bending
  • Compression (Empty bending)
  • Double Heart Shape
  • Controlled wrinkle (No Mandrel – excess material is formed into wrinkles)
  • Crush Bending (Square & Rectangle)
  • Split Die
  • Leaf Tooling (extended lip)
  • Perishable – wipers and mandrel (shank, body, nose, balls)
  • Non-Perishable
  • Bend Dies
  • Clamp Dies
  • Pressure Dies
  • Collet Pads
  • Wiper Holders
  • Wiper Posts
  • Clamp Bolster
  • Clamp Adjuster
  • Bend Die Base (Boss)
  • Bend Post (Tool Post)

Mandrel & Wiper Die Engineering
Data Close Pitch Thin Wall Standard Pitch

Tube OD Range (In)

Link Size

Mandrel Rod

Standard Shank Length (in.)

.219 – .279

1/2

6-32

1-1/2

280 – .373
1
8-32
1-1/2
.374 – .498
210-24
1-1/2
.499 – .623
31/4-20
3
.624 – .748
45/16-18
3
.749 – .935
53/8-16
3
.936 – 1.185
65/8-11
5
1.186 – 1.498
75/8-11
5
1.499 – 1.748
81-8
8
1.749 – 2.123
91-8
8
2.124 – 2.623
101-8
8
2.624 – 3.373
111-8
10
3.374 – 4.623
121-3/4-10
12
4.624 – 6.010
131-3/4-10
14


Mandrel & Wiper Die Engineering
Close Pitch Thin Wall

Tube OD Range (In)
Link Size
Mandrel Rod
Standard Shank Length (in.)
.936 – 1.18555/8-115
1.186 – 1.49865/8-115
1.499 – 1.74871-88
1.749 – 2.12381-88
2.124 – 2.62391-88
2.624 – 3.373101-810
3.374 – 4.623111-3/4-1012
4.624 – 6.010121-3/4-1014


Mandrel & Wiper Die Engineering
​Square Back Wiper

Item
Tube Diameter
“A”Wiper Reach
“B”Wiper Height
“C”Wiper Length
-1.062 to .55910.726
-2.560 to .68410.86
-3.685 to .93411.26
-4.935 to 1.3091.21.56
-51.310 to 1.4341.51.76
-61.435 to 1.5581.51.78
-71.559 to 1.8091.52.48
-81.810 to 1.9341.52.88
-91.935 to 2.43422.810
-102.435 to 2.8092.383.210
-112.810 to 3.0592.383.410
-123.060 to 4.00044.714
-134.545.516
-14545.716
-155.54.56.514
-16656.8814
-176.557.522
-1875.5822
Model NumberSB-51x4A-2S
SB-63x4A-2S
SB-80x4A-2S
SB-90x4A-2S
Model Weight (lbs.)8818110232094323148
Model Dimensions (ft.)16 x 4 x 516 x 4.5 x 4.523 x 7.5 x 6.516 x 8 x 5
Mild SteelØ50.8 x 2.5tØ63.5 x 2.5tØ76.2 x 2.0tØ88.9 x 2.2t
Stainless SteelØ50.8 x 1.9tØ63.5 x 1.9tØ76.2 x 1.5tØ88.9 x 1.5t
Max Tube Length w/ Mandrel3850385046004600
Max Draw Bend250 mm250 mm250 mm250 mm
Max Bending Radius75 mm75 mm80 mm80 mm
Bending Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
Rotation Accuracy+/-0.1°
+/-0.1°
+/-0.1°
+/-0.1°
Feeding Accuracy+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
+/-0.1 mm
