TF-80 SERIES TUBE END FORMERS

TF-80 Series Tube End Formers

Widely Used In Numerous End Forming Applications And Industries Such As Automotive Exhausts, Furniture, And Air Conditioning.

Machine Details

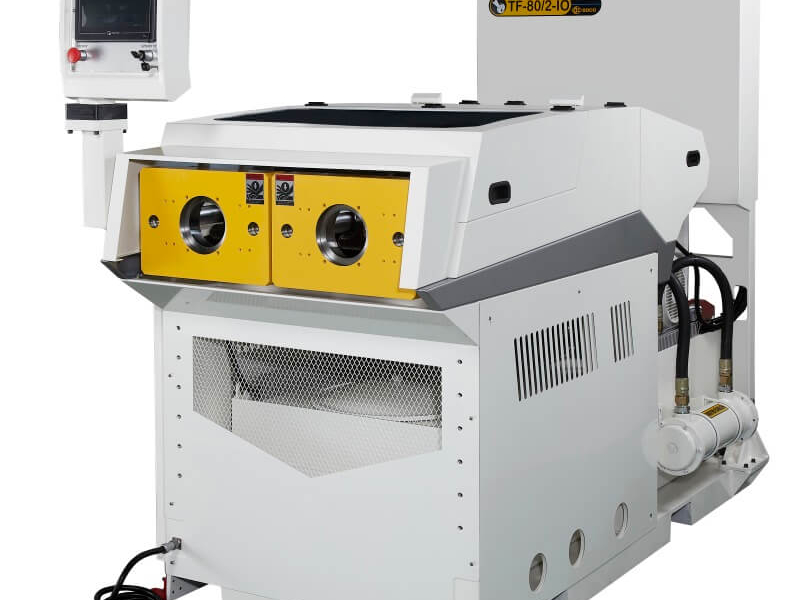

These machines go up to 82mm in size, and incorporate hydraulic operation and touch screen control. They may be fitted with 1 or 2 operating stations to process operations and tube ends and are suitable for both straight and bent tubular parts.

E Types

With similar capabilities as the others type, the E type adds a Ram and Vise Forming feature, which allows it to form even more complex shapes such as various types of beading and flaring processes.

IO Types

The I/O type is used for precision sizing of tubes, and uses a combination of expanding segments and reducing jaws for accurate control of the inside and outside diameters. These can be sequenced in any order for improved accuracy and reduced ovality. The I/O also incorporates a touch screen control for quick setup.

The I/O type is used for the highest accuracy and control of the inside or outside diameters (I.D./O.D.) of the tube. Unlike tooling systems used in E type, the I/O type tooling is comprised of a set of inside expanding fingers and outside3 reducing jaws. These can be sequenced in any order to give improved sizing accuracy and minimal ovality.

The IOE Types

This type combines the flexibility and features of both the IO and E types for maximum production possibilities.

End Forming Options by model Number

Model Number
Reducing

Expanding

Angular Flaring

Flare IN

Doming

Radius Flaring

Full Ball

Curling

Flanging

Beading

90° Form Flange

Angular Form Flange

Expand and Flare

Special Form

Special Form

Dimple


TF-80-E

• *

• *

• †

•

• *



TF-80/2-E

• *

• *

• †

•

• *



TF-80-IO























TF-80/2-IO





















TF-80/2-IOE

• *

• †

•



* 2 Operations

† C-Type Finger, then E-Type Vise & Ram

TF-80 Series Specifications

Capcity (409 Stainless)
Max OD
Min OD
Max Wall Thickness
Expanding / Reducing

Interface
All TF-80 Models
OD 82mm
OD 22mm
Ø1.5mm
6mm

Touch Screen
